XHC136C Grab Now

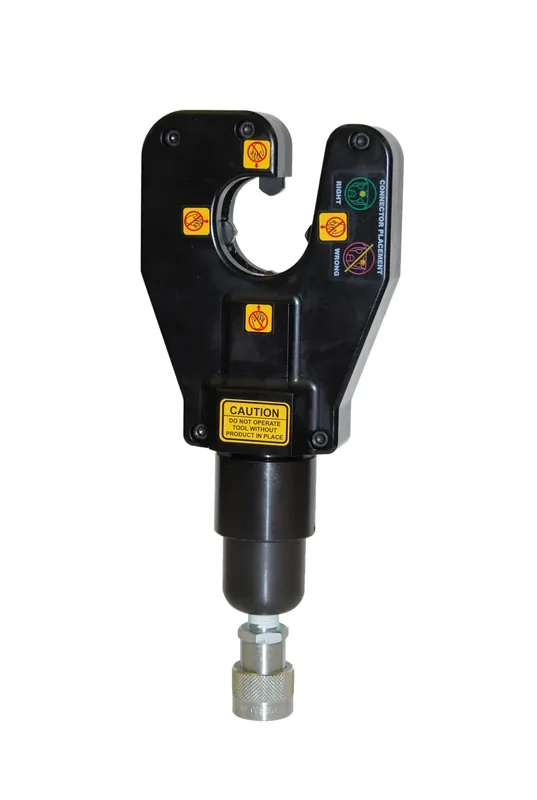

The XHC136C Hydraulic Powered Crimp Tool is a handheld, self-contained crimp tool head intended to crimp copper and aluminum terminals and splices 8 AWG – 750 MCM. This tool is to be used with a pump. DMC^® several pump options including two powered pumps: HPU11M (pneumatic) and HPU13M (battery).

Specifications:

Crimp Tool
Length=13.25 (336.6mm)
Width=2.54 (64.5mm)
Height=5.38 (136.5mm)
Mass/Weight =8.5lb (38.6kg)

Crimp Capacities
Crimp Force= 6 tons (58.83 kN)
#8750 KCMIL Copper Lugs & Splices
#8750 KCMIL Aluminum Lugs & Splices

DMC also offers a Battery Powered version HCE136B and a Hydraulic version HC136.
