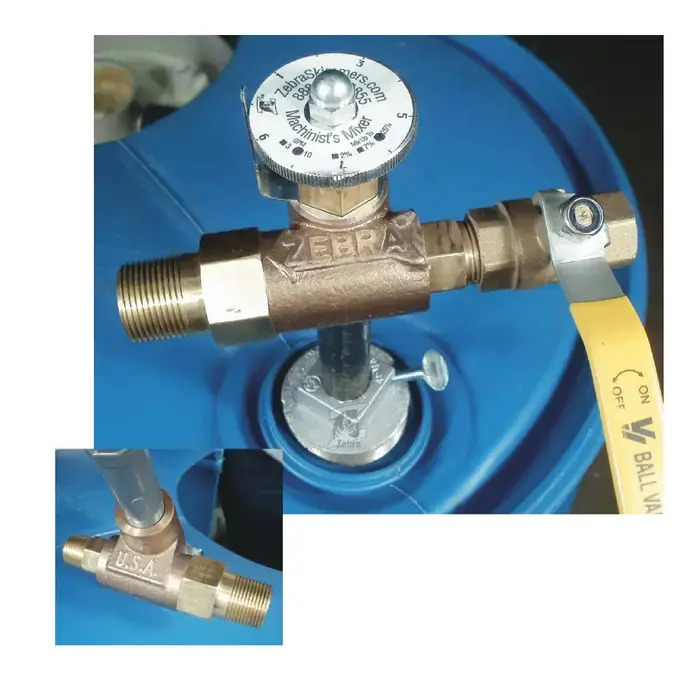

Top Rated ZEBRA SKIMMERS MIX1027 10 Gallon, 15 1 Mixer Venturi Coolant Mixer Type Venturi Coolant Mixer

Machine Shop Solutions

Problem: Electric coolant mixers may not offer the reliable that accurate measuring needs due to malfunction. Solution: A low-pressure pump design maintains precision without complicated moving parts, eliminating electronic failure.Venturi pumps are commonly used for coolant mixers. The moving water across the coolant orifice creates a low-pressure zone, drawing coolant into the water stream. The combination of the two laminar flows creates a strong turbulent zone in which the two fluids are thoroughly mixed. With no moving parts, the pump has a very high degree of reliability. The needle valve allows for a high degree of precision for setting the proportion of coolant mixed in with the water. Maintaining a consistent concentration increases sump and tool life

Benefits

• Properly mixing provides better emulsions and saves on raw material costs.

Features

• Separate water shut-off valve.
• Machined from solid bronze casting with galvanized steel standpipe.
• Maximum viscosity: 500 SUS
• 40″ discharge tube included, maximum length delivery.
• Minimum 25 PSI needed (75 PSI maximum).
• 3 point accuracy using Force-Flo technology.
• Machined needle valve.
• Locknut below dial holds mixing reference.
• Standpipe check valve keeps mixing chamber loaded.
