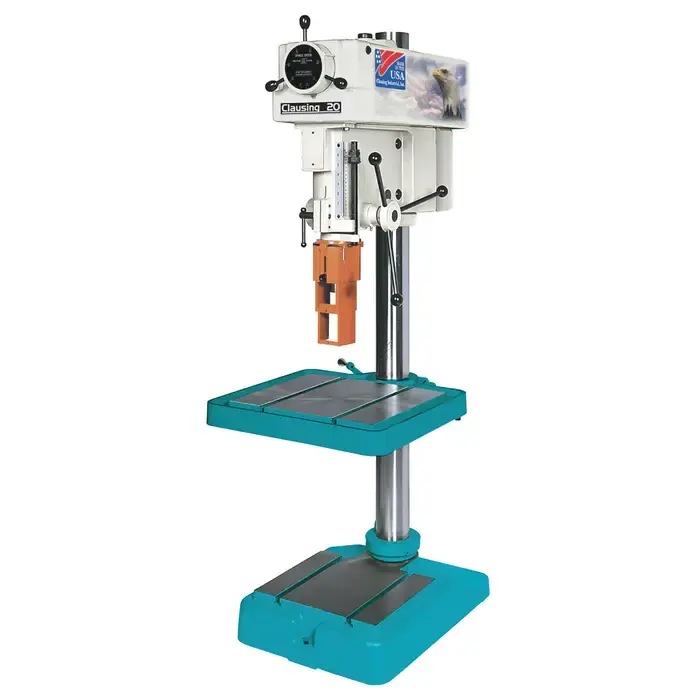

Top Pick CLAUSING 2272 1.5 HP Horsepower Variable Speed Floor Style Drill Press

Machine Shop Solutions

Problem: Drilling downtimes from tool changes, readjustments and speed changes regularly hampers productivity. Solution: A switch-operated variable speed drill design works alongside quick change tools to increase production and performance.

Engineered For Reliability And Endurance

The superior hole-making performance and improved capacity of this Clausing drill press pays off in more dollars earned for your shop. That’s because operators can handle more jobs and do them better and faster. You can optimize efficiency by dialing directly to the most effective RPM for your tool and materials even while the job is running. All it takes is a simple flip of the switch to change from a lower to higher operating range, which is ideal for applications that require a quick tool change-out. Equipped with a heavy-duty precision head and 4″ column diameter and a 1/2″ thick wall to provide great rigidity and accuracy. Infinitely variable speeds from 300 To 2,000 RPM

Applications

• Drill, ream, spot face and counterbore.

Features

• 3MT spindle with 6.5″ travel, 2.5″ diameter quill and micrometer depth stop.
• 4″ column with 1/2″ thick wall for great rigidity and accuracy.
• Precision ground 22″ x 19″ oil trough table, handles large parts and fixtures.
• Motors and switches are installed and wired, ready to connect to power.
• Single phase motors have 8′ three-wire cord and plug.


  Ships direct from factory.

  Heavy-Duty Precision Head

• All bearing surfaces are precision bored simultaneously for exact alignment.
• Eight ball bearings support the drive and spindle.
• Lower spindle bearing has a double row to absorb both radial and thrust loads.

Model #2272

• Motor: 1.5 HP, 1 Phase, 1,725 RPM, 115/230V, 60 Hz

Model #2274

• Motor: 1.5 HP, 3 Phase, 1,725 RPM, 208/220/440V, 60 Hz

Technical Documents & Manuals

• Operation Manual
