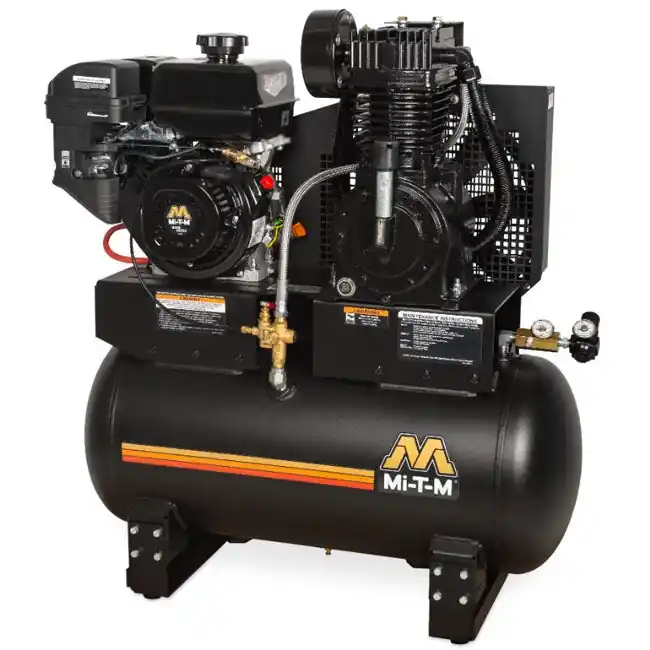

Mi-T-M AM2-SM09-30M – 30-Gallon Two Stage Gasoline Air Compressor

MODEL: AM2-SM09-30M

AM2-SM09-30M

Designed with a powder coated ASME receiver tank, you will experience proven performance from the 30-gallon air compressor time after time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Optional Accessoriess (Not Included)

AX-0003 Manual Drain/Regulator/Metal Bowl – Drains moisture from air system

Specifications

CFM @ PSI: 17.2 @ 175

Displacement/ Engine: 300cc Mi-T-M OHV

Tank Size: 30-gallon

Engine Idle Control: Cable Throttle

Net Weight: 364.00 lbs.

Shipping Weight: 434.00 lbs.

Length: 40.50 in.

Width: 17.50 in.

Height: 44.50 in.
