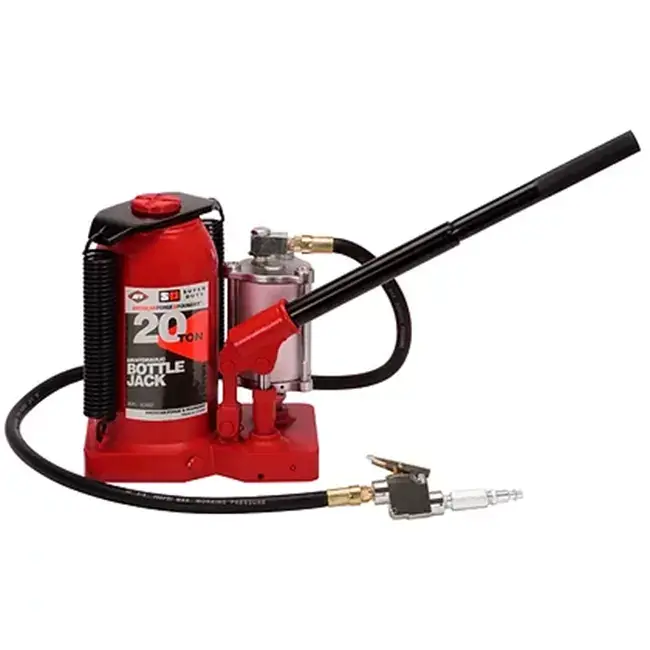

Price Cut AFF 5620SD 20 Ton Super Duty Air Hydraulic Bottle Jack

AFF 5620SD 20 Ton Super Duty Air Hydraulic Bottle Jack

Model 5620SD

American Forge Durable Super Duty 20 Ton Air/Hydraulic Bottle Jack with Welded Tank and Frame, Specially Engineered Air Motor. The welded tank and frame provides superior strength; Likewise, the thick base design gives the most stable lifting platform for stronger performance, even in rough surface conditions.

Specially engineered air motor for consistent and reliable operation where dual return springs help provide controlled and easy descent. With a high height of 20.63 In and a low height of 10.37 In, the super durable, 20 ton, bottle jack has shielded release screws that prevent accidental lowering and eventual injury to the user.

Operates at 110-120 PSI and are factory pretested to 150% of its rated capacity to ensure long shop life and consistent operation.

Features

Welded tank and frame for stronger performance in rough service conditions and in the case of off-center loading

1-1/8 inch thick base provides stable lifting platform on poor surfaces

High strength steel ram and cylinder supported by a longer ram guide for better safety in off-center load conditions

Internal release screw is protected by the base design to avoid accidental release/damage

Quality tested and field tested air motor ensures consistent, reliable operation

Can be operated by either air or manually.

Specifications

Capacity: 20 tons

Low height: 10-3/8”

High height: 20-5/8”

Lift: 6-3/8”

Weight: 41.65 lbs

Base footprint: 5-3/4” x 9”

Base thickness: 1-1/8″
