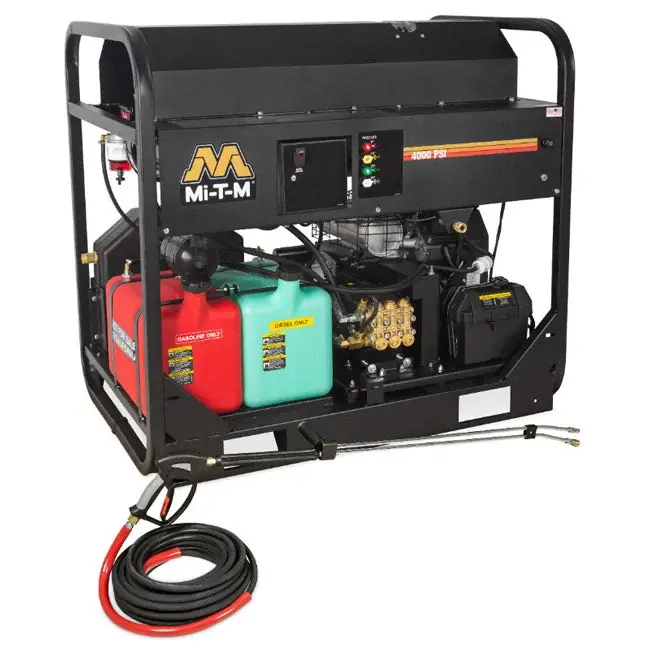

Mi-T-M HS-4004-1MAK – HS Series Gasoline Belt Drive Pressure Washer Limited Offer

Mi-T-M HS-4004-1MAK – HS Series Gasoline Belt Drive Pressure Washer

MODEL: HS-4004-1MAK

HS-4004-1MAK

Mount the HS Series to a trailer or in the back of a truck to take mobile cleaning from one jobsite to the next. Easily blast away grease, oil, heavy mud and grime with ease.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer

Engine
Electric start – sealed battery included

Frame
Heavy-duty powder coated steel frame

Components
2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline MODEL:s sold in California are required to have a CARB compliant engine. Consult factory.
MODEL: equipped with trapping unloader, all other MODEL:s equipped with K7 flow actuated unloader.

Optional Accessoriess (Not Included)

HX-0130 Three-way Ball Valve – Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

HX-0142 Steam Combination 250°F – Increases outlet temperature to 250°F

HX-0145 Adjustable Thermostat – Operator is able to adjust outlet water temperature between 86°F-248°F

HX-0146 Hour Meter – Displays the number of hours unit has been in operation

HX-0147 Four Point Lifting Capability – Allows unit to be lifted by crane

HX-0148 Adjustable Detergent Valve – Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**

Specifications

PSI: 4000

GPM: 4.0

Displacement/ Engine: 674cc Kohler CH640 OHV

Pump: AR

Engine Fuel Tank Capacity: 10.0 gallon

Burner Fuel Tank Capacity: 10.0 gallon

Burner Fuel Cons.: 2.76 gph

BTU Per Hour: 386,400

Net Weight: 750.00 lbs.

Shipping Weight: 854.00 lbs.

Length: 50.00 in.

Width: 34.00 in.

Height: 46.00 in.
