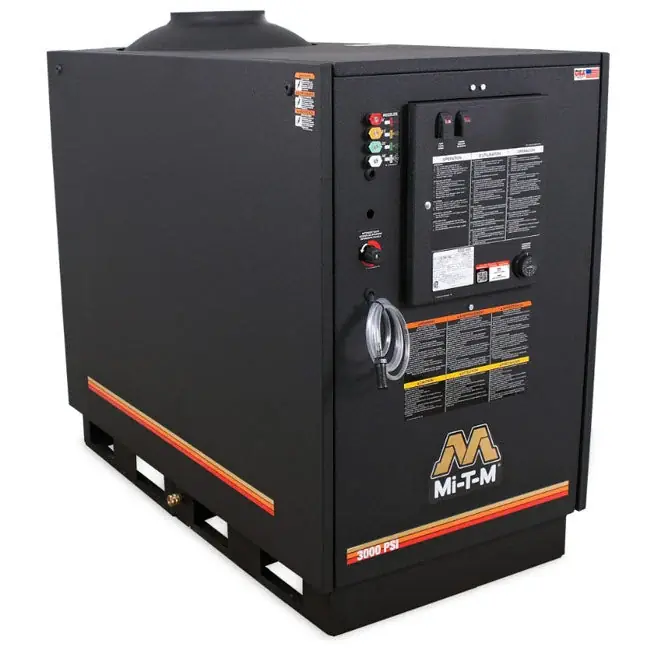

Mi-T-M HG-3004-3208 – HG Series Natural Gas/LP Belt Drive Pressure Washer Clearance

Mi-T-M HG-3004-3208 – HG Series Natural Gas/LP Belt Drive Pressure Washer

MODEL: HG-3004-3208

HG-3004-3208

Providing maximum cleaning power, the stationary HG Series offers the convenience of a steady fuel source, making it the perfect solution for wash bays.

Pump
Factory preset trapping unloader · Thermal relief valve · Adjustable high pressure detergent injector

Motor
Open drip-proof motor electric motor with thermal overload protection

Frame
Powder coated steel side panels and frame

Components
Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 24 volt control system · 1/2-inch schedule 80-coil heat exchanger · Electronic ignition with an intermittent pilot · Adjustable thermostat

Miscellaneous
Maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Optional Accessoriess (Not Included)

HX-0104 K7 Unloader, Flow Activated – Auto Start/Stop N/A – Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released

HX-0105 Liquid Propane – Vapor Only – Converts natural gas pressure washer to operate on liquid propane (vapor only)

HX-0106 Hour Meter – Displays the number of hours unit has been in operation

HX-0107 Time Delay Shutdown – Timer will shut unit off automatically when trigger gun is released and timer reaches setting **Consult factory before ordering this option.**

HX-0108 (1) Remote Station – Auto Start/Stop N/A – Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**

HX-0109 Time Delay Shutdown and First Remote Box – Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**

HX-0110 Additional Remotes – Up To 3 – Additional remotes that may be added to unit after the first remote is installed

HX-0111 Auto Start/Stop – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

HX-0121 250°F Steam Upgrade – Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure

HX-0124 Auto Start/Stop and First Remote Option – When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection

HX-0296 Programmable Logic Controller – Includes auto start/ stop and timed lockout

HX-0297 Programmable Logic Controller with First Remote – Includes auto start/stop, timed lockout and detergent solenoid

HX-0299 Auto Start/Stop and First Remote Option – Metal Control Box – When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; Adds metal control box, may be mounted away from unit to control on/off, burner and soap injection

HX-0288 (1) Remote Station (Auto Start/Stop Not Available), Metal Control Box – Adds plastic control box with rocker switches, can be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option**

HX-0289 Time Delay Shutdown and First Remote, Metal Control Box – Timer will shut unit off automatically when trigger gun is released and timer reaches setting; adds metal control box with rocker switches, can be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option**

HX-0290 Addition Remotes (Up to 3), Metal Control Box – Additional metal control boxes with rocker switches, can be added to unit after the first remote is installed

HX-0304 Programmable Logic Controller with First Remote, Metal Control Box – Includes auto start/stop and timed lockout

HX-0305 Additional Programmable Logic Controller Remotes, Plastic Control Box – Adds additional remotes to PLC

HX-0306 Additional Programmable Logic Controller Remotes, Metal Control Box – Adds additional remotes to PLC

Specifications

PSI: 3000

GPM: 3.9

Horsepower/Motor: 8.0 HP, 208V, 3Ø, 23.0A

Pump: General

Natural Gas BTU Per Hour: 338,000

LP Gas BTU Per Hour: 326,000

Draft Diverter: 21 in.

Net Weight: 758.00 lbs.

Shipping Weight: 878.00 lbs.

Length: 56.50 in.

Width: 29.00 in.

Height: 49.75 in.
