CEMB DWA1100TROLLEY Mobile 8-Sensor CCD Wheel Alignment System

MODEL: DWA1100TROLLEY

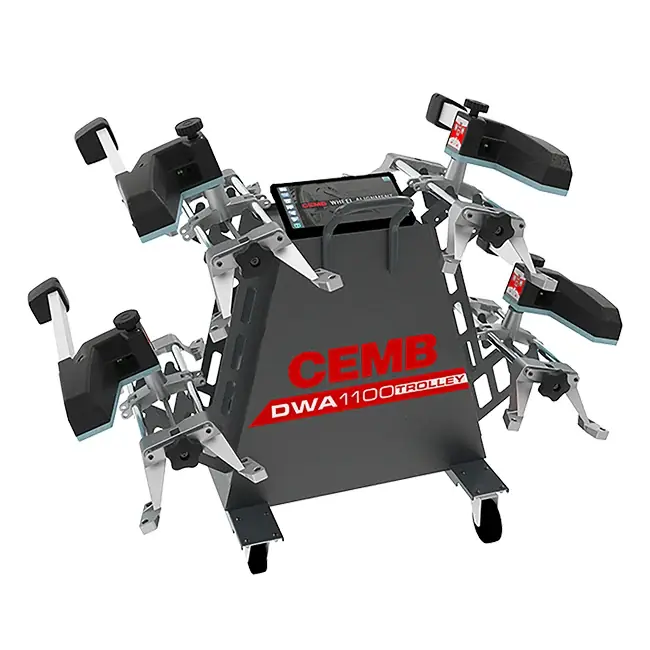

The CEMB DWA1100TROLLEY is a compact, highly mobile 8-sensor CCD wheel alignment system designed for cars and light trucks. Its wheeled trolley stores and charges the alignment sensors and clamps while keeping the entire system easy to move between service bays. By replacing a traditional desktop computer and cabinet setup with a rugged 10 in. Toughpad, the operator can work comfortably around and underneath the vehicle while keeping the alignment controls close at hand.

The mobile trolley rides on 4 in. pivoting rubber wheels for smooth movement across shop floors. Integrated holders keep the clamps and CCD sensor heads organized, while the trolley also serves as the charging point for the wireless sensors and tablet. The compact design makes the DWA1100TROLLEY especially useful for multi-bay facilities and shops where permanent floor space is limited.

The DWA1100 alignment platform uses lightweight wireless CCD sensors, lithium batteries, and MEMS accelerometers to provide accurate wheel-alignment measurements. CEMB’s intuitive Windows-based software guides the technician through alignment procedures, supports adjustment of two axles on one screen, provides clear adjustment guidance, and includes an AUDIT function to help identify vehicle driving problems.

Key Features

Mobile 8-sensor CCD wheel alignment system for cars and light trucks

Space-saving trolley design for multi-bay and compact workshops

4 in. (100 mm) pivoting rubber wheels for smooth movement on shop floors

Integrated supports store clamps and CCD sensor heads

Trolley serves as a charging point for the CCD sensors and Toughpad

Rugged 10 in. HD touchscreen Toughpad

Windows 10 operating system

Wi-Fi, Bluetooth, and HDMI connectivity

Water-resistant, dust-resistant, impact-resistant tablet construction

Lightweight CCD sensor heads – approximately 5.7 lb. each

Lithium sensor batteries that can be recharged at any time

MEMS accelerometers measure sensor inclination for caster and camber acquisition

2.4 GHz wireless communication platform

Fast caster-swing procedure

Two-axle adjustment displayed on one screen

Clear on-screen adjustment guidance

AUDIT function helps identify driving problems not covered by normal alignment specifications

Wi-Fi connection supports automatic software updates

Extensive CEMB vehicle alignment database

Standard Composition

10 in. Toughpad with Windows 10 operating system

Four car CCD sensors

Four wheel clamps with safety elastic band

Two sets of wheel-clamp grips

Steering wheel lock

Brake pedal lock / depressor

Wi-Fi connectivity for automatic software updates

CEMB wheel-alignment software and car database

Standard Accessories Shown by CEMB USA

Rim Clamp – CEMB 46DW66130

Grips / Pins – CEMB 46DWA7503

Brake Pedal Depressor – CEMB 74A010479

Steering Wheel Holder – CEMB 74A010478

Bungee Cord – CEMB 21DW76363

Optional Accessories

VIN Code Scanner – CEMB GBT4430

Turn Plates – CEMB 1300025140P

Slip Plates – CEMB 1300020407

Wheel Clamp Extensions – CEMB 46DW75803

Set of four 3-point self-centering wheel clamps for 10 in. to 25 in. rims

Clamp support arms and tire tips for tires up to 31 in. outside diameter; optional support arms extend capability up to 40 in.

Metal grips for clamping steel rims from the inside

Premium turntables rated up to 2,205 lb. (1,000 kg) per plate

Alignment Software

Clear, technician-friendly Windows interface

Guided wheel-alignment procedures

Fast caster swing

Adjustment of two axles from one screen

Direct spoiler procedure without extensions

Clear adjustment help

AUDIT function for identification of driving problems

Automatic software updates over Wi-Fi

Warranty Information

CEMB USA wheel aligners include a 2-year limited parts warranty and 1-year labor warranty in the United States. Wheel-aligner warranty coverage begins from the activation date. Contact Rep-Quip Sales for complete warranty and installation terms.

Specifications

Product Type: Mobile CCD wheel alignment system

MODEL: DWA1100TROLLEY

Vehicle Applications: Cars and light trucks

Measuring System: 8-sensor CCD wheel alignment platform

Included Sensor Heads: 4 car sensors

Sensor Weight: Approximately 5.7 lb. each

Sensor Battery Type: Rechargeable lithium

Sensor Technology: CCD with MEMS accelerometer

Wireless Communication: 2.4 GHz

Operator Interface: 10 in. rugged HD touchscreen Toughpad

Operating System: Windows 10

Connectivity: Wi-Fi, Bluetooth, HDMI

Trolley Wheel Diameter: 4 in. (100 mm)

Standard Wheel Clamps: Four clamps with safety elastic band and two sets of grips

Standard Clamp Range Shown in CEMB Sell Sheet: Approximately 12 in. to 24 in.

Optional 3-Point Clamp Range: 10 in. to 25 in.

Software Updates: Automatic over Wi-Fi

Vehicle Database: CEMB car alignment database
