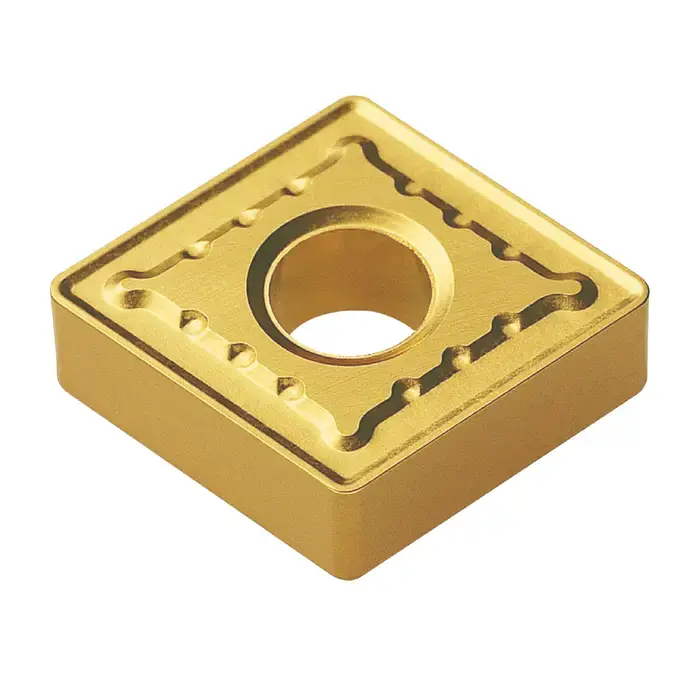

Fan Favorite KORLOY 1-02-045280 – CNMG543-GR NC3220, 80° Diamond, Indexable Carbide Turning / Boring Insert

Applications

This insert supports cutting speeds up to 400 m/min, feed rates from 0.15 to 0.35 mm/rev, and depths of cut up to 4.0 mm. It is designed for medium to rough turning and facing operations, including heavy boring with interrupted cuts in rigid setups. The 3/64″ nose radius suits semi-finishing to medium machining tasks with good edge strength. It is optimized for ISO P (steel and alloy steel) as the primary material group and ISO K (cast iron) as secondary. The negative rake chipbreaker and 80° diamond shape provide excellent performance in interrupted cuts and roughing but are not suited for precision finishing or profiling. This insert is not recommended for thin-wall or low-rigidity setups or non-ferrous materials.

Features

• 80° Diamond Shaped Indexable Inserts.
• Versatile and dependable, “C” shaped inserts are one of the most popular shapes in the industry.
• Negative inserts can provide up to 8 cutting edges, four 80° cutting edges and four 100° cutting edges (seperate holder needed to utilize 100° cutting edge).
• The 100° cutting edges are ideal for facing operations.
• Available in multiple chipbreakers & grades.
