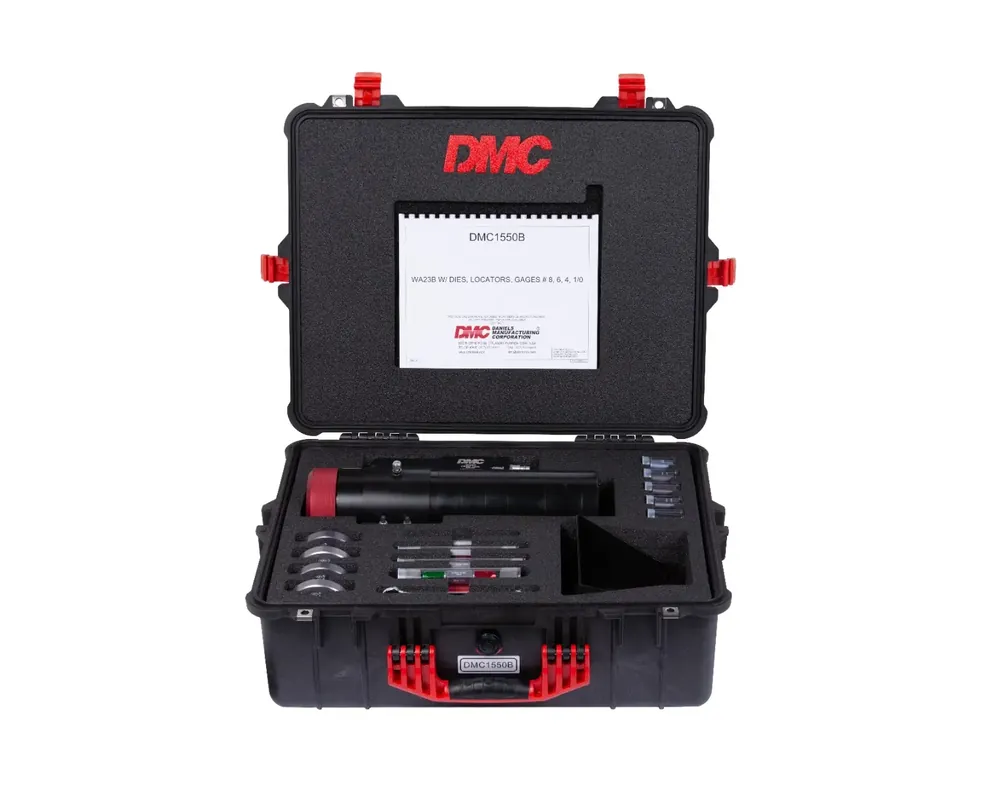

DMC1550B Exclusive Offer

The DMC1550B kit includes the WA23B® pneumatic crimp tool, Mil-Spec dies, locators, and Go/No-Go inspection gages.

The WA23B delivers 4.5 tons of crimp force and is capable of crimping large-gauge machined contacts, uninsulated terminals, and uninsulated splices from 8 through 4/0 AWG with no additional power boosters. The WA23B requires filtered and regulated air with a pressure range of 100120 psi to operate.

This kit includes 4 dies, 5 locators, and 4 gages all Mil-Qualified to the AS22520/23 specification. Custom dies and locators are available to meet specific requirements. It is important to note that only Mil-Spec dies and locators can be used for military applications. Contact DMC for commercial options for terminals and lugs.

The DMC1550B kit contains illustrated operating instructions for all the tooling included.
