Budget Square D D323NRB General Duty Safety Switch

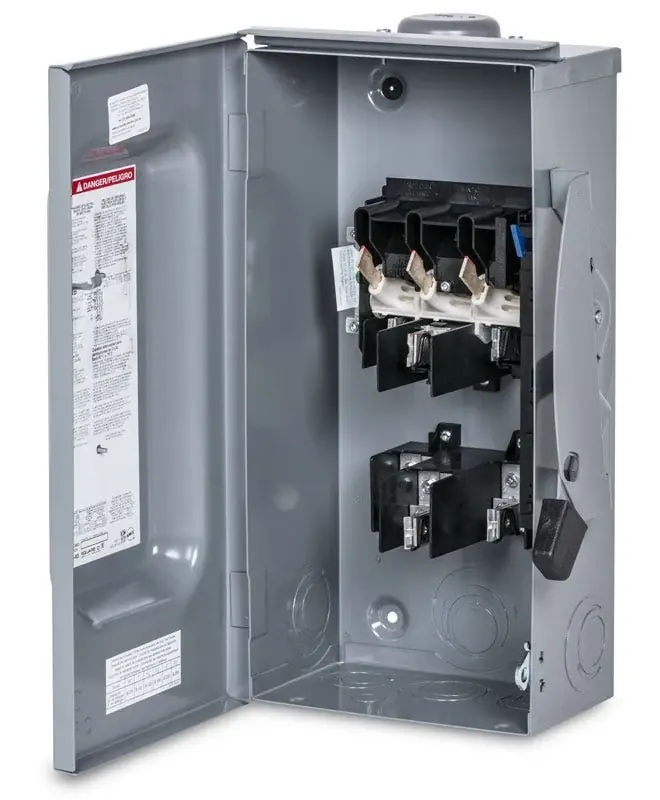

Square D D323NRB General Duty Safety Switch

• Authentic Square D D323NRB Safety Switch
• Terminal Type: Lugs
• Type of Duty: General Duty
• UPC : 785901461401
• Maximum Voltage Rating: 240VAC
• Wire Size: #12 to #1/0 AWG(Al) – #14 to #1/0 AWG(Cu)
• Depth: 6.50 Inches
• Height: 17.50 Inches
• Width: 8.50 Inches
• Action: Single Throw
• Ampere Rating: 100A
• Approvals: UL Listed File: E2875
• Enclosure Rating: NEMA 3R
• Enclosure Type: Rainproof and Sleet/Ice proof (Indoor/Outdoor)
• Enclosure Material: Galvannealed Steel
• Factory Installed Neutral: Yes
• Fuse Type: Cartridge (Class H K or R)
• Disconnect Type: Fusible
• Short Circuit Current Rating: 100kA (max. depending on fuse type)
• Mounting Type: Surface
• Number of Poles: 3-Pole
•
General Duty Safety Switches are a durable and economical solution for applications such as lighting air conditioning and appliances.
