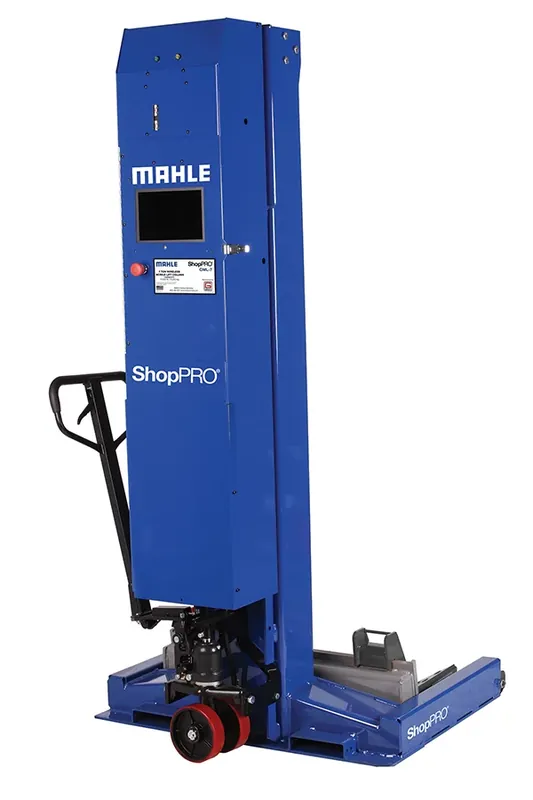

Best Seller Mahle CML-9Wx6 – 57 ton Commercial Vehicle Mobile Column Lift – Wireless Wide Base (Set of 6)

CML-9Wx6 – 57 ton (112,000 lb.) Commercial Vehicle Mobile Column Lift – Wireless with Wide Base (Set of 6)

MODEL CML-9Wx6

Part Number: 485 80104 00

Wireless Mobile Vehicle Column Lifts

The patented Gray Wireless Portable Lift System improves a shop’s safety, productivity and flexibility. The wireless lift system family will lift a wide variety of vehicles allowing technicians to safely and efficiently complete preventative maintenance tasks prior to major component repair.

Heavy Duty Lifting Capacity.14,000 lb (CML-7) and 19,000 lb (CML-9) per column capacity options. Wide base available in 19,000 lb capacity (CML-9W).

Intelligent.Patented wireless smart lift technology.

Simple.Tablet-based touch screen with on-board manuals, videos and internet.

Broad Application.Heavy duty through light duty vehicles.

Fully Adjustable Carriage.12″ forks supports wheel diameter from 5″ to 24.5″

Patent Pending.Down-stop visual safety system.

Adjustable.Lift height 69″ (1753 mm)

24 volt mobile column, with a wide, adjustable carriage for over-sized tire engagement

Features the industry’s original wireless communication system, state of the art touch screen graphic control system, and a patented self-centering adjustable carriage, providing the user with the most reliable and safe lifting environment

No external wires or cords providing clear and safe access to the undercarriage of the vehicle

When used at full operating height the user is provided with a lift height of 69 inches of free-and-clear access perfect for preventative maintenance; transmission removal and installation; clutch replacements; and with singe and paired operation make easy work of axle, brake, and wheel work

Specifications

Certification ALI Certified

Capacity (Each)19,000 lb (8,165 kg)

Max. Hydraulic Operating Pressure2,600 psi (17.9 MPa)

Min/Max Wheel Diameter4 in (102mm) – No Max

Min (2)/Max (4) Lift Height 32 in / 69 in (813 mm / 1,753 mm)

Lift Speed (Max Load) 60 in/min (1,524 mm/min)

Weight1,575 lb (714 kg)

Height 88.5 in (2,248 mm)

Height at Full Lift (157.13 in (3,991 mm)

Operating Peak Power 4 HP (3 kW)

Operating Voltage 24 VDC Nominal

Charger Voltage Required 70-130 VAC @50-60 Hz
