Autel MaxiSYS IA900AST All-Systems ADAS & Alignment Low Price

Autel MaxiSYS IA900AST Wheel Alignment and All-Systems ADAS Calibration Package with ULTRAADAS Tablet

Part Number: IA900AST

The Autel MaxiSYS IA900AST is a complete four-wheel alignment and All-Systems ADAS calibration package. It combines the IA900WA robotic alignment and calibration frame, a comprehensive set of targets, patterns, mats, stands, and calibration components, plus the MaxiSYS ULTRAADAS wireless diagnostic tablet and MaxiFLASH VCI. Preloaded wheel-alignment and ADAS software allow technicians to perform advanced diagnostics, precise alignments, and complete ADAS calibration procedures through one integrated system and workflow.

Six high-resolution positioning and tracking cameras measure wheel-alignment angles and automatically monitor vehicle height as the shop lift is raised or lowered. Robotic frame movement, automatic crossbar positioning, and optical target-position validation help establish the correct frame angle, distance, and offset before calibration. Alignment readings are accurate to 0.02 degrees for fast, precise, and repeatable results.

The included 24 in. frame-mounted touchscreen can cast to and from the ULTRAADAS tablet, allowing technicians to control the workflow from either display. Illustrated alignment instructions, live readings, required tools, adjustment locations, vehicle-inspection information, and step-by-step ADAS calibration procedures are displayed through the MaxiSYS interface.

Key Features

Complete four-wheel alignment and All-Systems ADAS calibration package

Includes 12.7 in. MaxiSYS ULTRAADAS wireless touchscreen tablet

Includes MaxiFLASH VCI for vehicle communication and diagnostics

Preloaded wheel-alignment and ADAS calibration software

Includes targets, patterns, mats, stands, and calibration components for camera, radar, LIDAR, and Night Vision systems

Supports LDW, AVM, BSD, ACC, LIDAR, NVS, and RCW calibration workflows

Six high-resolution positioning and tracking cameras

Alignment reading accuracy to 0.02 degrees

Cameras automatically track vehicle height as the shop lift moves

Robotic frame movement and automatic crossbar positioning

24 in. frame-mounted touchscreen display

Frame display and ULTRAADAS tablet can cast to and from each other

Optical target-position validation verifies angle, distance, and offset

Illustrated alignment instructions, live readings, required tools, and adjustment locations

Vehicle coverage for U.S., Asian, and European vehicles from 1996 and newer

Folding crossbar, built-in cable management, and mobile frame

Tablet holder with built-in charging capability

One-year limited warranty

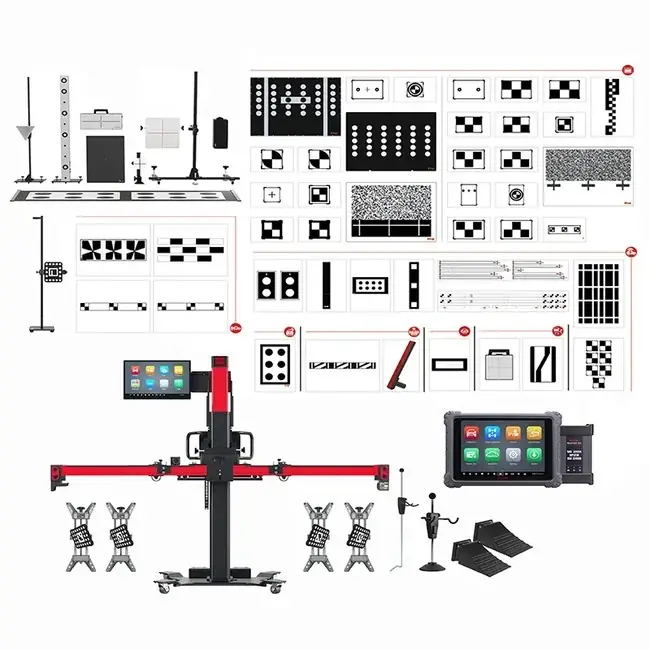

Included Components

IA900WA mobile wheel-alignment and ADAS calibration frame

24 in. touchscreen display mounted to the frame

12.7 in. MaxiSYS ULTRAADAS wireless touchscreen tablet

MaxiFLASH VCI

Preloaded wheel-alignment and ADAS calibration software

4 wheel clamps with camera targets

4 wheel targets

Distance target

Steering wheel lock

Brake pedal lock

2 wheel chocks

Lane Departure Warning calibration targets and patterns

Around View Monitoring calibration targets and mats

Blind Spot Detection calibration equipment

Adaptive Cruise Control radar calibration equipment

LIDAR calibration equipment

Night Vision calibration equipment

Rear Collision Warning calibration equipment

Application-specific target stands, brackets, mats, storage cases, and accessories

Tablet holder with integrated charger

Calibration Coverage

Lane Departure Warning and forward-facing camera systems

Around View Monitoring and surround-view camera systems

Blind Spot Detection systems

Adaptive Cruise Control radar systems

LIDAR systems

Night Vision systems

Rear Collision Warning systems

Four-wheel alignment and advanced alignment measurements

Steering-angle relearn and post-alignment procedures where required

Wheel Alignment Software Functions

Vehicle inspection of tires, brakes, suspension, steering, and related components

Live alignment readings and full alignment-result display

Front-only, rear-only, chassis-symmetry, and tire-diameter views

Illustrated alignment guides with required tools and adjustment locations

Wheel-off, raised-vehicle, and advanced alignment adjustment workflows

Service recommendations with support for attached photos, videos, and notes

Warranty Information

Includes a 1-year limited warranty. The purchase of an IA900 system may also include in-shop setup and onboarding training performed by an Autel ADAS specialist. Training availability should be confirmed at the time of purchase.

Specifications

System Type: Mobile four-wheel alignment and All-Systems ADAS calibration package with diagnostic tablet

Part Number: IA900AST

Base Frame: MaxiSYS IA900WA

Vehicle Coverage: U.S., Asian, and European vehicles from 1996 and newer

ADAS Coverage Included: LDW, AVM, BSD, ACC, LIDAR, NVS, and RCW

Alignment Accuracy: 0.02 degrees

Positioning and Tracking Cameras: 6 high-resolution cameras

Frame-Mounted Display: 24 in. touchscreen

Included Tablet: MaxiSYS ULTRAADAS wireless touchscreen tablet

Tablet Display Size: 12.7 in.

Included VCI: MaxiFLASH VCI

Software: Wheel-alignment and ADAS calibration software included

Minimum Crossbar and Target Height: 6 in.

Maximum Crossbar and Target Height: 7 ft.

Shipping Configuration: 3 freight pallets

Pallet 1 Shipping Weight: 655 lb.

Pallet 1 Shipping Size: 86 in. L x 52 in. W x 42 in. H

Pallet 2 Shipping Weight: 515 lb.

Pallet 2 Shipping Size: 60 in. L x 59 in. W x 44 in. H

Pallet 3 Shipping Weight: 300 lb.

Pallet 3 Shipping Size: 88 in. L x 48 in. W x 40 in. H

Total Shipping Weight: 1,470 lb.

Warranty: 1-year limited warranty

UPC: 849438014339
